Location: Austin, TX 78701
Project Type: Commercial
Service Provided: Commercial HVAC Inspection

Project overview

Eight images document concealed commercial HVAC equipment at a San Antonio Street property in downtown Austin. The set includes a Goodman manufacturing label, an indoor coil model marking, the installed air-handling area, refrigerant and condensate connections, and two Fieldpiece measurement screens.

This project record is based on the complete photo set supplied for the property. The street address is retained only as an internal reference; the public-facing copy uses Austin, TX for useful local context without repeatedly publishing the site address.

Goodman indoor HVAC unit with condensate and refrigerant piping

HVAC Equipment and Visible Conditions

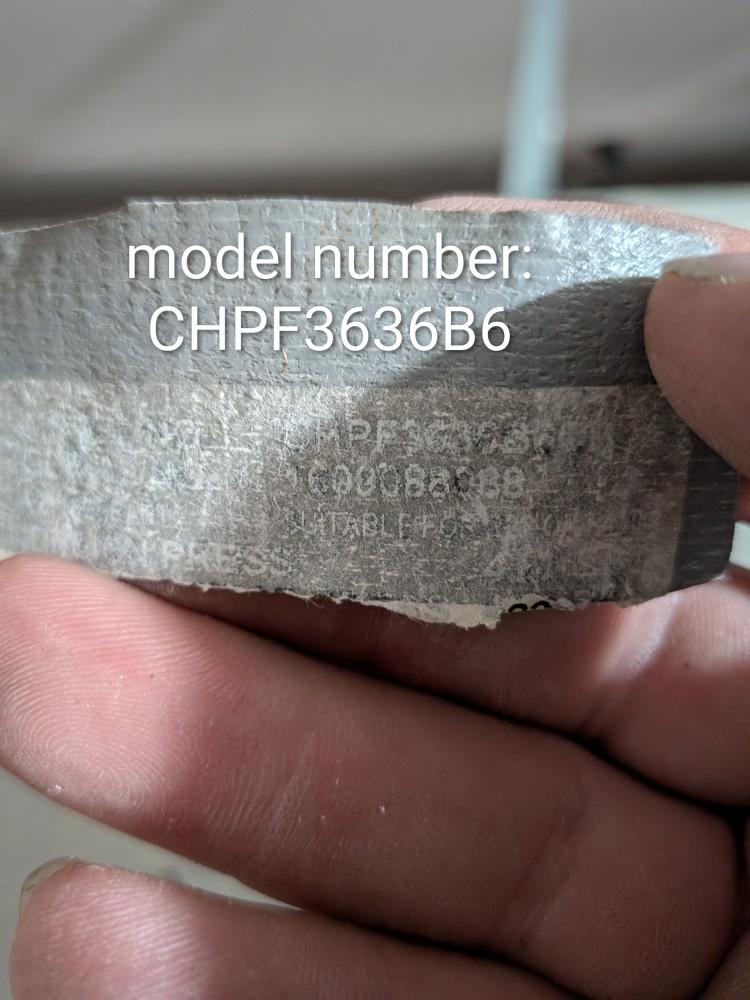

A coil model marking reading CHPF3636B6 is visible in the first image. The photograph records that condition at the time of the visit; it does not, by itself, establish a failure or prove a completed repair.

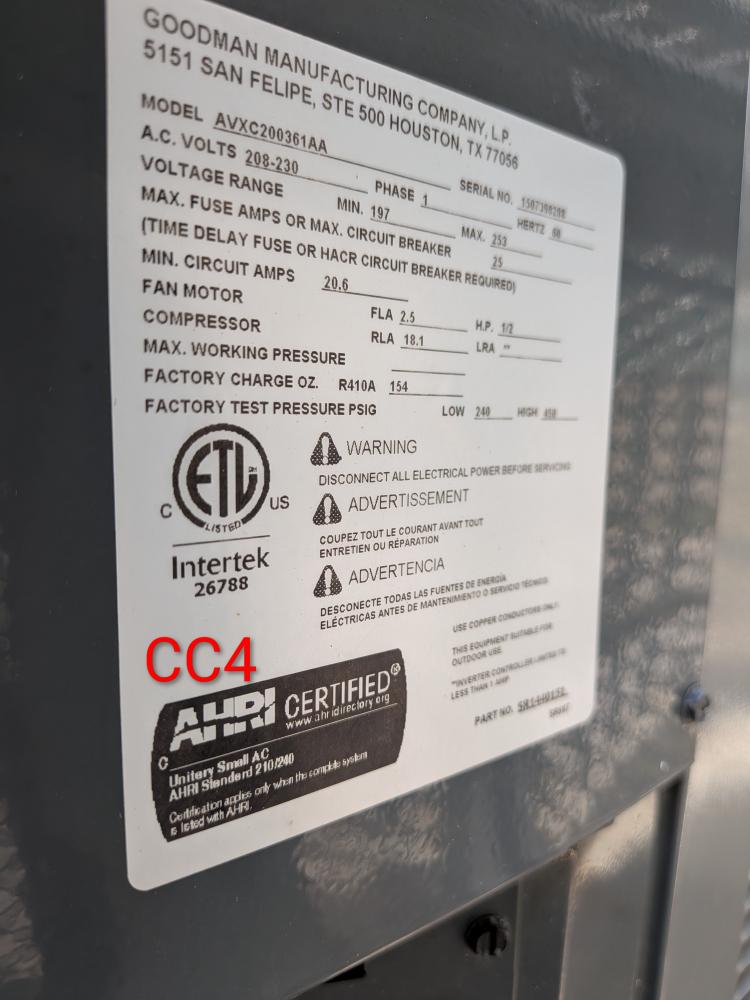

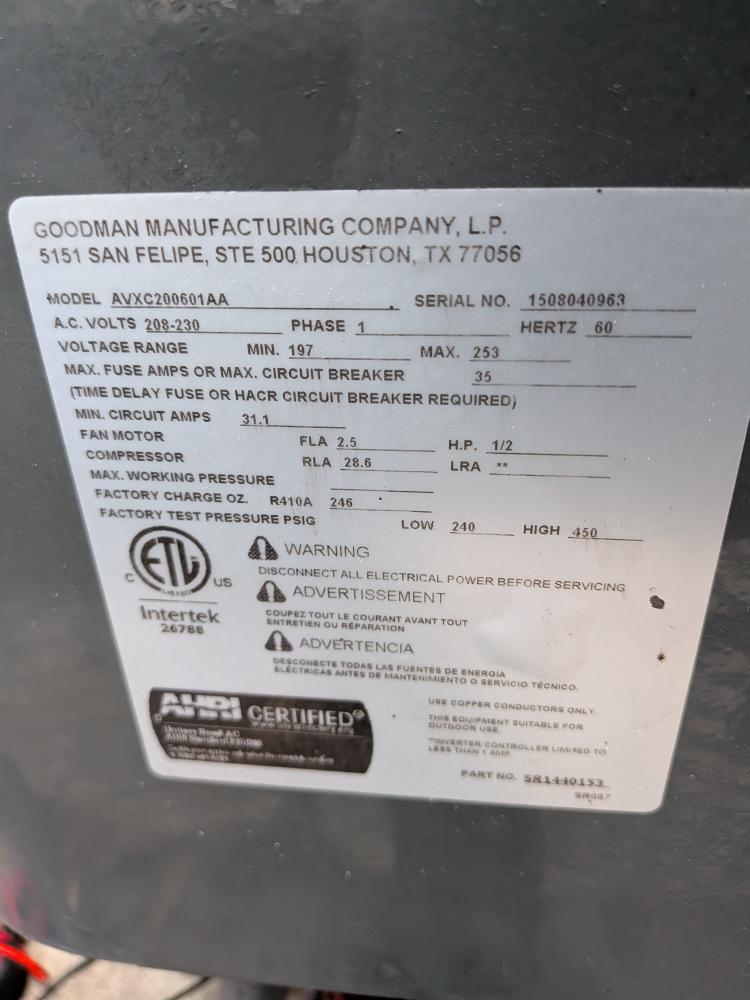

Goodman Manufacturing labels are photographed on the indoor equipment. The photograph records that condition at the time of the visit; it does not, by itself, establish a failure or prove a completed repair.

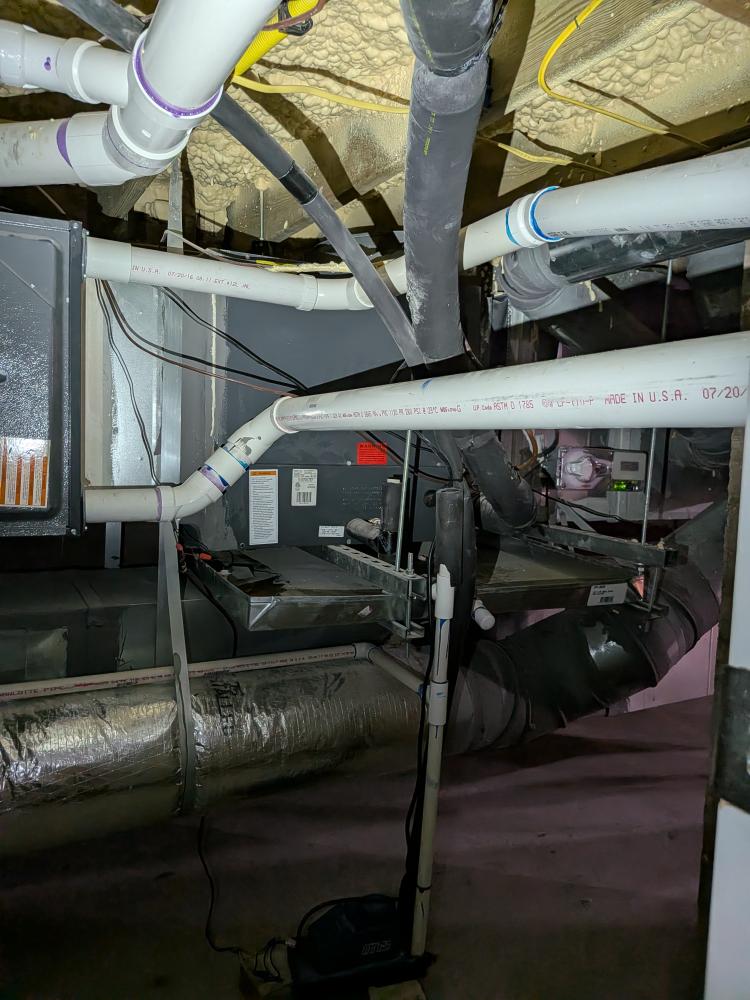

The installed equipment, insulated refrigerant lines, PVC condensate piping, and service access area are visible. The photograph records that condition at the time of the visit; it does not, by itself, establish a failure or prove a completed repair.

Two Fieldpiece screenshots record multiple air-side and refrigerant-side temperature channels. The photograph records that condition at the time of the visit; it does not, by itself, establish a failure or prove a completed repair.

What the Measurements Document

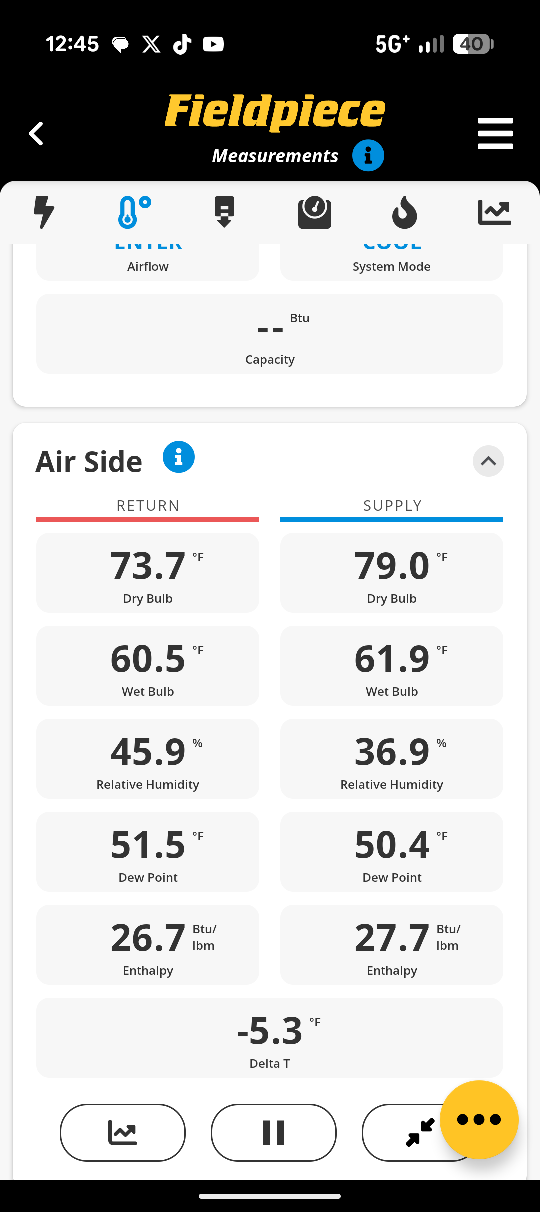

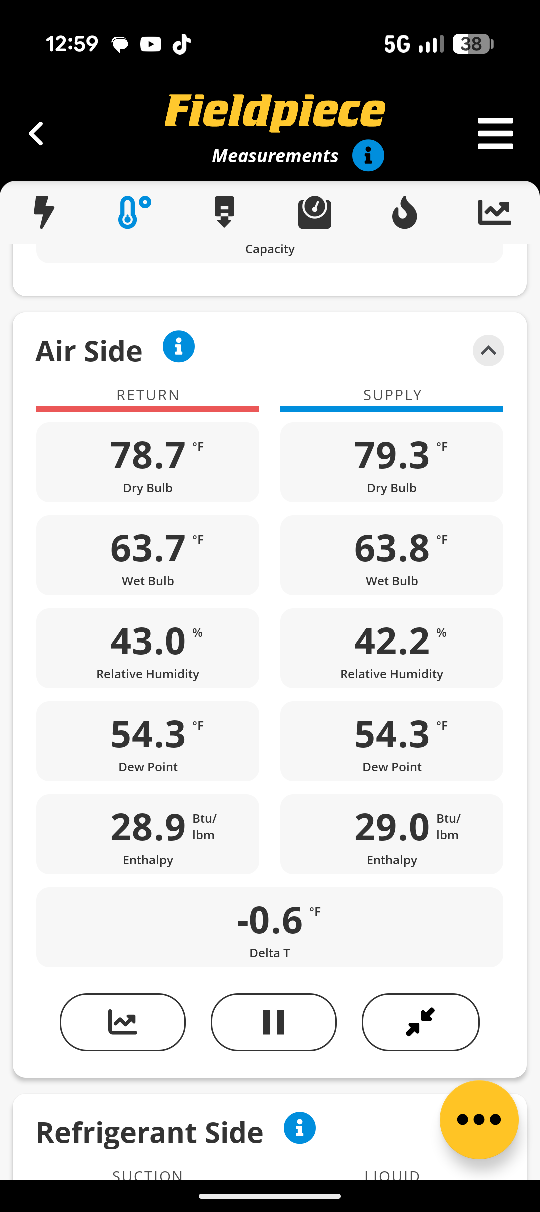

The Fieldpiece screens show air-side values including 73.7 and 79.0 degrees in one view, and 78.7 and 79.3 degrees in another, along with additional probe channels. Because probe placement and operating context are not completely shown, the numbers are not presented as a diagnosis.

Instrument screens and equipment labels are useful snapshots, but they need to be read in context. A displayed temperature, current, humidity, or pressure is reported here only when it is legible in the image. The photographs do not supply the complete test procedure, operating mode, manufacturer target, or final service result, so this project page does not turn an isolated number into a diagnosis.

Why These Checks Matter

Indoor coil identification, piping condition, condensate routing, and temperature splits are common parts of an HVAC inspection. Together they help establish what equipment is present and what the system was doing at that moment, while further testing is needed before assigning a cause to a comfort complaint.

For an HVAC visit, documenting the air side, refrigeration side, electrical components, controls, drainage, and the occupied space creates a more useful record than photographing one component alone. It allows visible conditions to be compared with the readings captured during the same visit while keeping conclusions limited to what the photos support.

Commercial HVAC Inspection in Austin, TX

Downtown Austin commercial spaces often place HVAC equipment above ceilings or in tight service areas. Clear photographic documentation gives property teams a practical record of the concealed equipment and readings while avoiding unsupported claims about work that is not visible.

Routine inspection and maintenance can reveal restricted filters, debris at heat-transfer surfaces, drainage concerns, loose or altered wiring, and control messages before they are overlooked. Any repair recommendation still depends on a technician testing the equipment on site. This portfolio entry therefore describes the documented equipment, conditions, and readings without promising a result that the images cannot verify.
